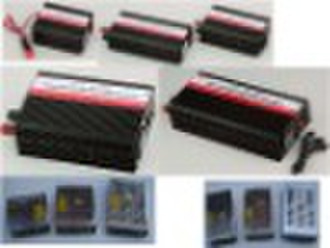

Switching power supply
original price: 14,00 USD
Def Xia
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | SUNWOR |
| Model Number | S-350-5 |
| Input Voltage | 88~132VAC or176~264VAC |
| Output Voltage | 5VDC |
| Output Frequency | DC |
| Output Current | DC |
| Output Power | 301 - 400W |
| Output Type | Single |
switching power supply 350W Single Output Switching Power Supply AC input range selected by switch. Protections:short circuit/overload/over voltage/over temperature 100% full load burn-in test Low cost,high reliability 1 year warranty Size: 215×115×50mm Weight:1.08kgAC input voltage range: 90-132VAC/180-264VAC AC inrush current: cold start 25A/115V,50A/230V DC adjustment range:±10% rated output voltage Overload protection:105%-135%, hiccup mode, auto recovery Setup,rise,hold up time: 200ms,50ms,20ms/230VAC at full load Working temperature and humidity:-10-+60oC,20%-90%RH ModelDC output voltage,Current rangeVoltage toleranceRipple&NoiseEfficiencyS-350-5 5V,050A±2%150mV73%S-350-7.5 7.5V,040A±2%150mV76%S-350-12 12V,029A±1%150mV74%S-350-13.5 13.5V,025.8A±1%150mV79%S-350-15 15V,023.2A±1%150mV78%S-350-24 24V,014.6A±1%150mV81%S-350-27 27V,013A±1%200mV82%S-350-48 48V,07.3A±1%240mV83%
Delivery terms and packaging
Packaging Detail: Heat shrink-wrap plastic bag for each product,then pack into white box,then pack into standard export carton Delivery Detail: 1-30days
Port: Shanghai,Ningbo,Shenzhen,Beijing,Guangzhou
